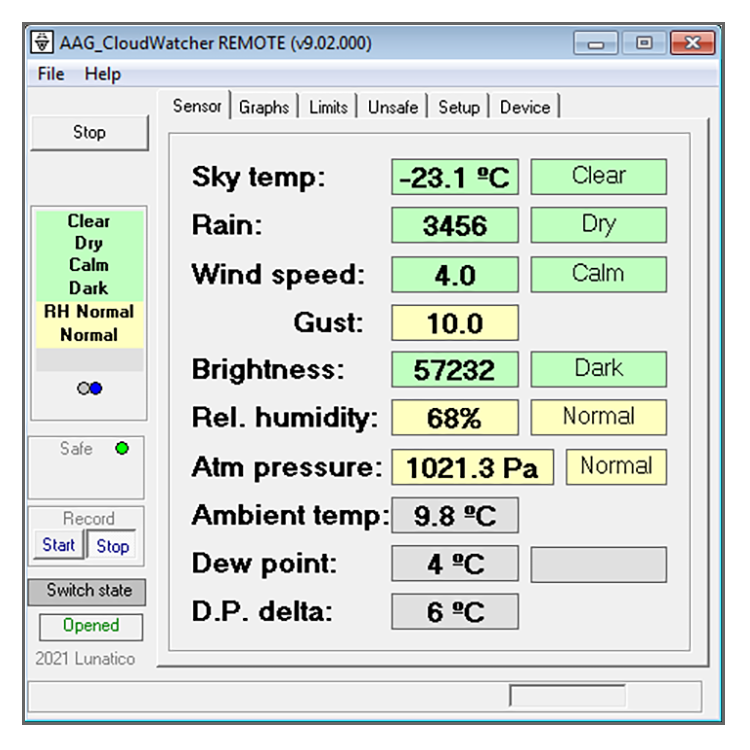

The Sensor tab displays the primary parameters measured by the CloudWatcher. Some parameters such as the Wind Speed, Gust and Relative Humidity and Atmospheric Pressure are only available if the associated, optional sensors have been attached (anemometer) or fitted (atmospheric pressure and relative humidity).
Should you wish to upgrade your CloudWatcher at a later date, you can purchase additional components here. Please contact support@lunaticoastro.com for further advice on adding the Atmospheric Pressure and Relative Humidity sensor.
Notes:
Colours and subjective descriptions such as 'Clear', 'Dry' and 'Calm' are defined on the Limits tab.
'D.P. delta' is the rounded difference between the ambient temperature and dew point.
'Ambient temp' is temperature supplied by the Relative Humidity sensor. If this is not available, the temperature from the IR sensor is used. The source in use can be verified by reference to the Device tab.
|
