This is an informational tab which displays the environmental conditions related to:
•Cloud
•Rain
•Wind
•Speed
•Brightness
•Ambient Temperature
•Humidity
•Atmospheric Pressure
The availability of: atmospheric pressure; humidity; and wind graphs depends on the specification of the CloudWatcher.
The horizontal axes are labeled in real time hours.
The backgrounds of Cloud, Rain, Wind, Brightness, Humidity and Pressure graphs are painted with the colours defined for the threshold limits undertab.
The Temperature graph’s background, as well as other control parameters, such as number of points, recording frequency, label color, graph color, etc., are defined under the Setup => Graphs tab.
Graphs can be automatically exported on an individual basis in either .png or .jpeg formats. This behaviour is also determined by settings on the Setup => Graphs tab.
|
Right-click on the Temperature Graph in order to adjust the y-axis.
|
|
.png)
|
.png)
|
|

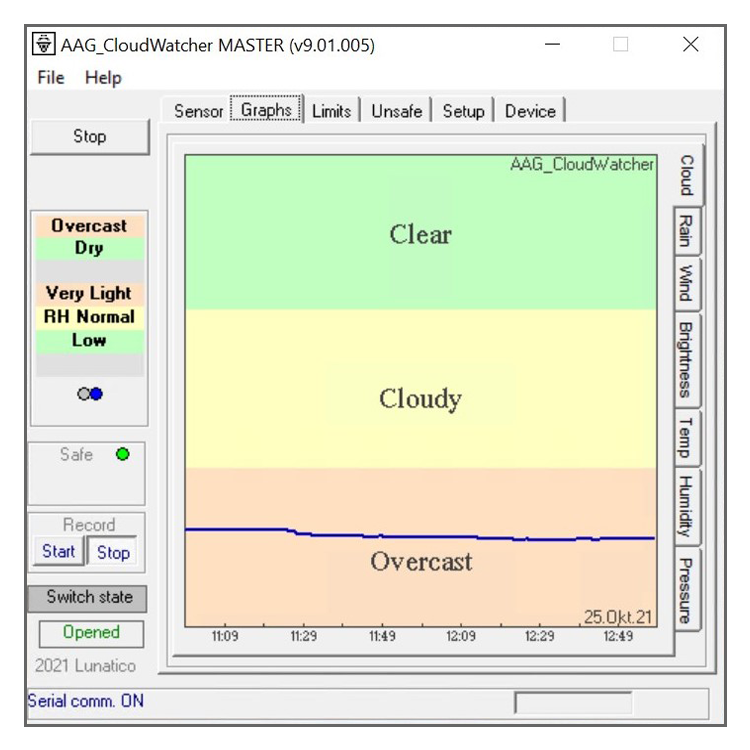

Cloud Section
|

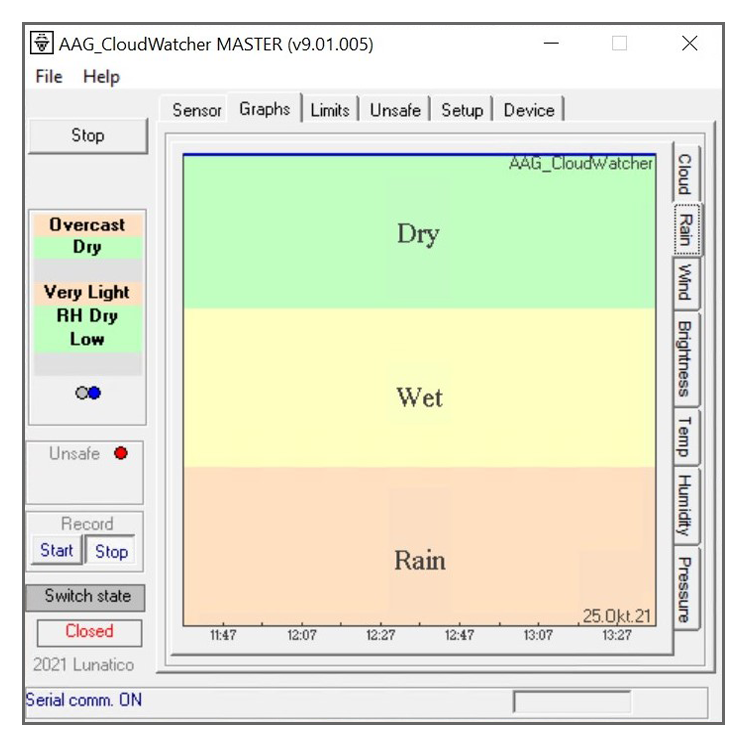

Rain Section
|
|
.png)
|
.png)
|
|

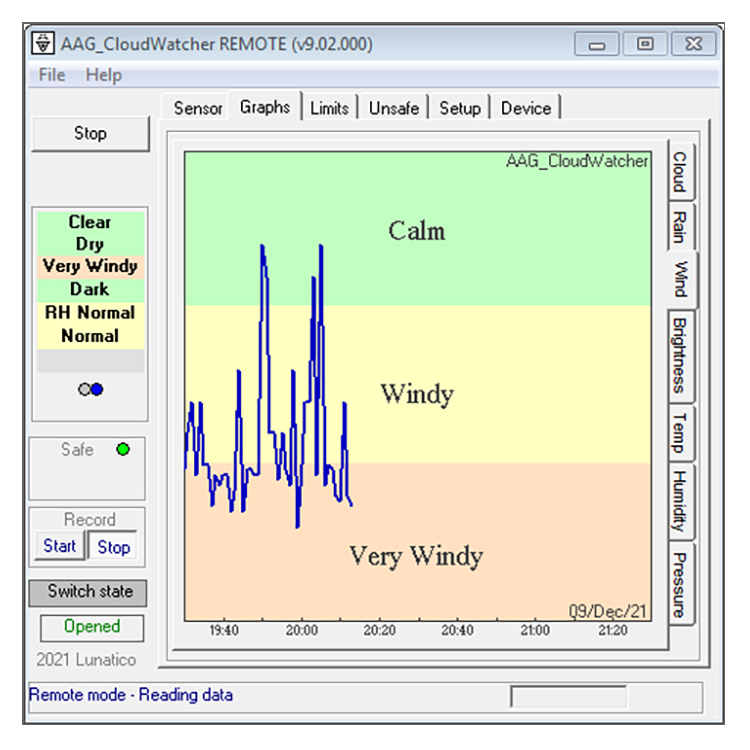

Wind Section
|

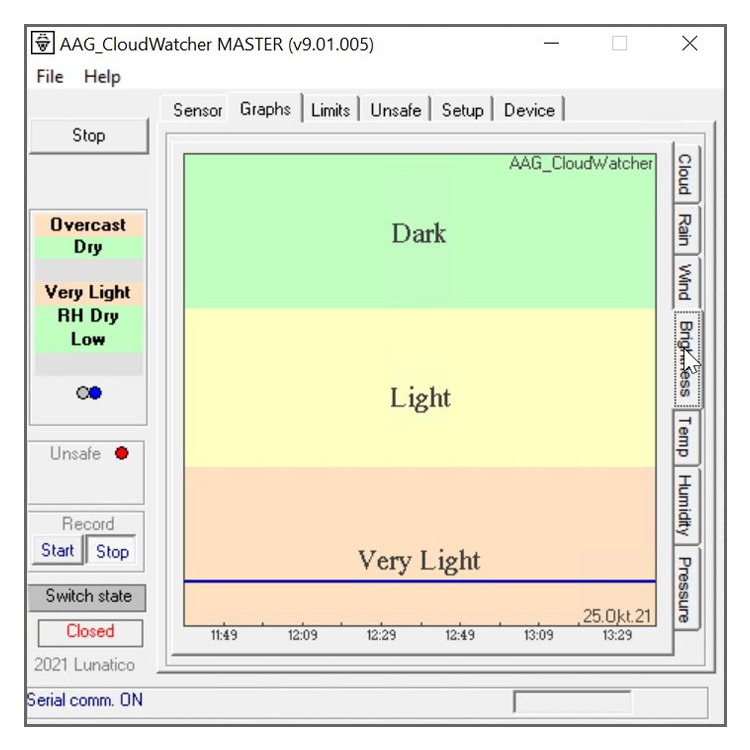

Brightness Section
|
|
.png)
|
.png)
|
|

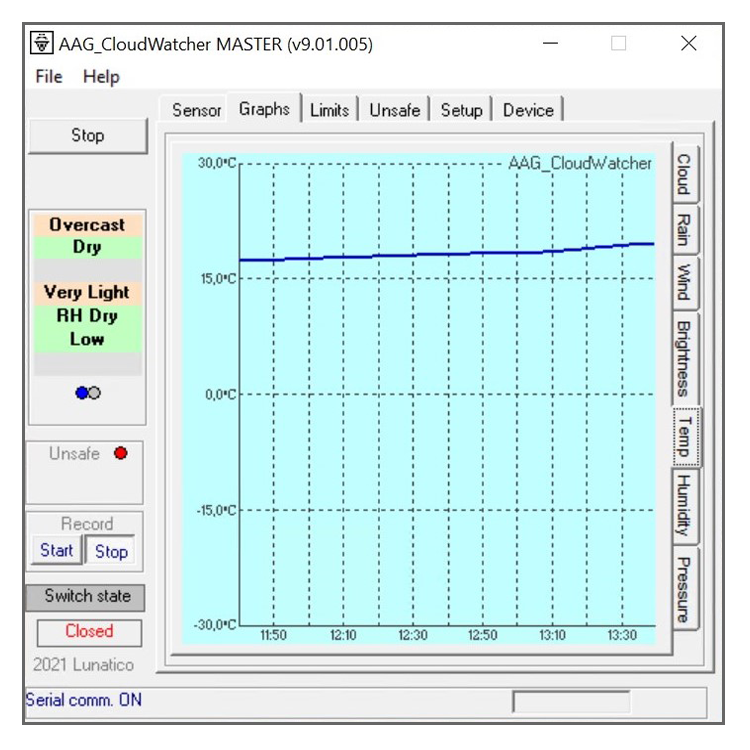

Temperature Section
|

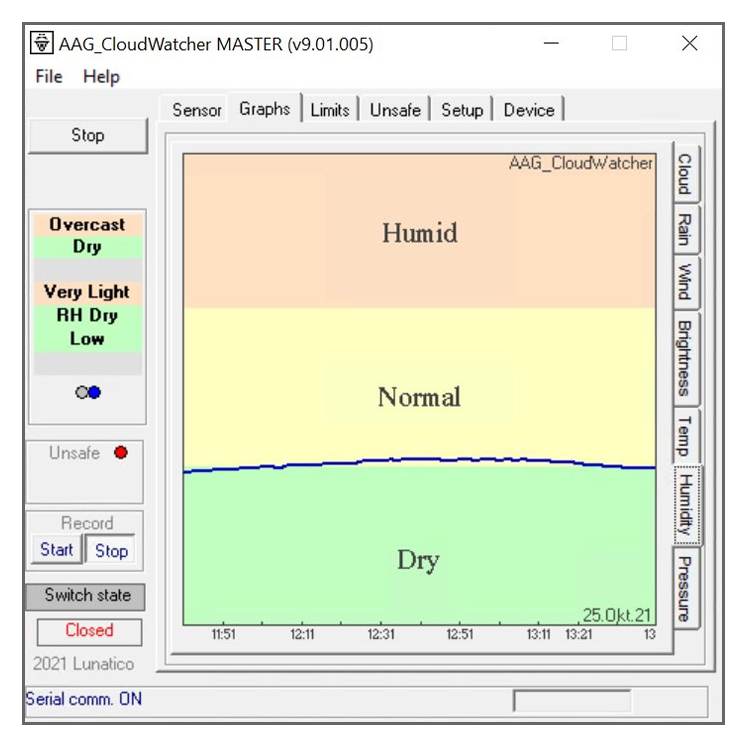

Humidity Section
|
|
.png)
|
|
|

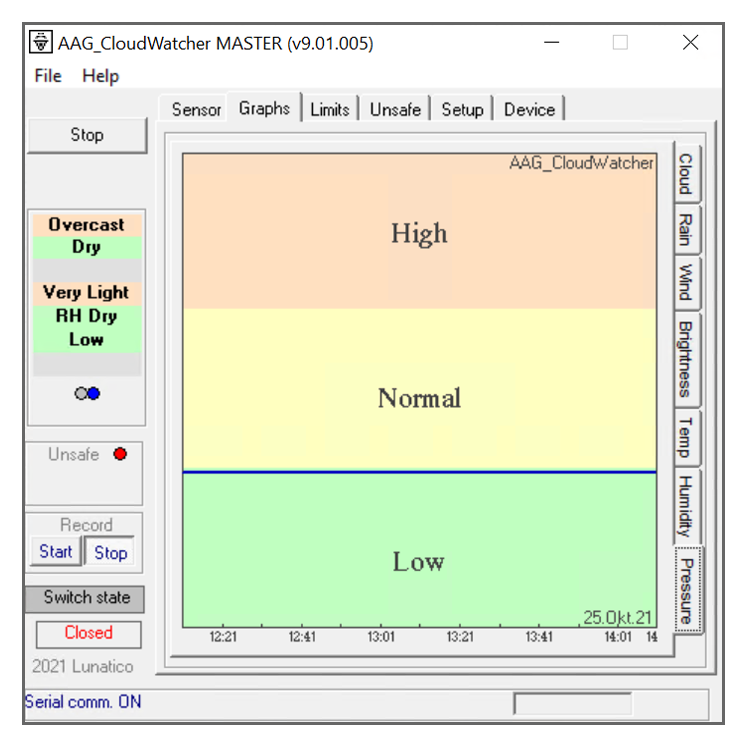

Pressure Section
|
|
|
