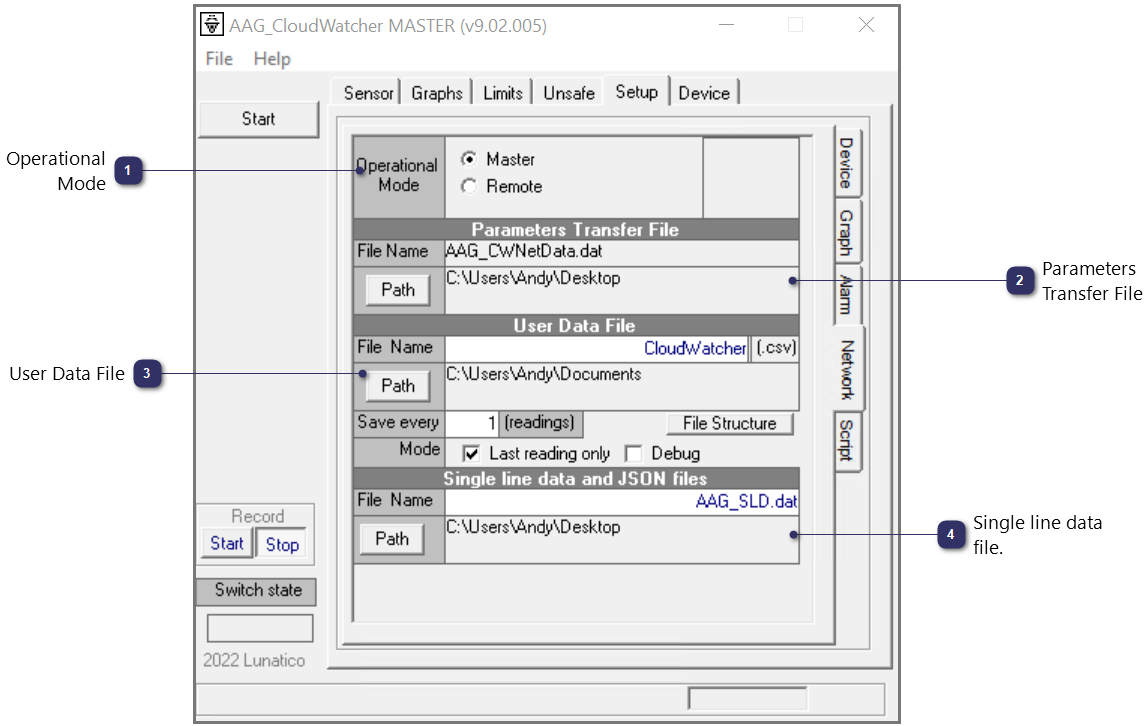

Network Side Tab

Operational Mode

Toggle between Master and Remote Modes.

Parameters Transfer File

The Parameters Transfer Data file is required if any Remote Mode installations are to be installed on the network.

Only software running in Master mode can the Parameters Transfer File.

Left-click on 'Path' to set the output directory.

Note: The default file path is the installation directory.  Recent Windows versions do not permit files to be written to this directory and therefore an alternative, writeable location should be used.

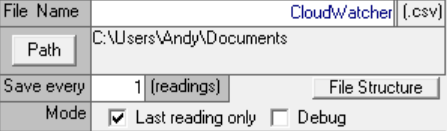

User Data File

The file is optional and can be written by software running in either Master or Remote modes.

The file is is .csv format.  Left-click on the current file name, in blue,  to amend it.

Left-click on 'Path' to set the output directory.

Note: The default file path is the installation directory.  Recent Windows versions do not permit files to be written to this directory and therefore an alternative, writeable location should be used.

By default, the file updates on every reading.  This interval can be set to any integer value.

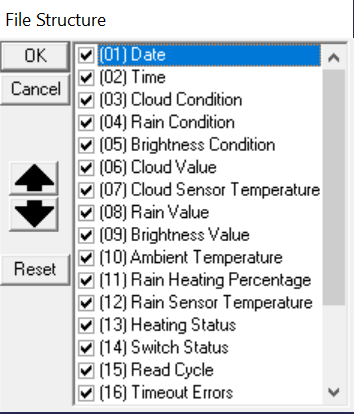

Left click on 'File Structure' to open a menu that allows the content and order of file to be determined.

Select 'Last reading only' and / or 'Debug' as required.

Caution: Choosing Debug can result in large file sizes.

Single line data file.

The Single Line Data (SLD) file and new JSON format files are written to the path specified in this section.

The name and extension of the SLD file may be freely chosen by left-clicking on the current file name, in blue.

The name of the JSON format file, aag_json.dat, is fixed.  The file is required by the Lunatico ASCOM Safety Switch.

Left-click on 'Path' to select the file path.

Note: The default file path is the installation directory.  Recent Windows versions do not permit files to be written to this directory and therefore an alternative, writeable location should be used.
